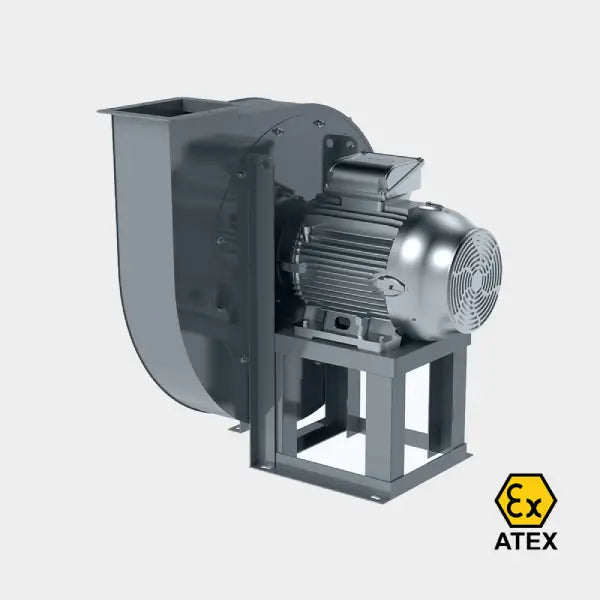

ATEX High-Pressure Centrifugal Fan with Backward Curved Blades

The VN-VPMR ATEX is a high-pressure centrifugal fan designed for safe and efficient air movement in ATEX Zone 1 & 2 (Gas) and Zone 21 & 22 (Dust) environments. Featuring backward curved blades, this fan delivers exceptional performance for clean to lightly dusty air, with airflow capacities up to 37,000 m³/h and static pressure up to 19,000 Pa—making it ideal for high-resistance duct systems and demanding industrial ventilation needs.

Built for durability, the VN-VPMR ATEX is available in epoxy-coated steel, galvanized steel, or stainless steel (304/316). The impeller, also available in steel or stainless steel, ensures reliable performance in harsh conditions. Powered by an ATEX-certified IP55 motor, it supports 230V single-phase or 400V three-phase operation and is frequency converter compatible for variable speed control.

The fan can be configured for multiple installation types, including motor-supported (Arrangement 4), reinforced motor plate (Arrangement 5), or belt-driven setups. With 16 outlet angles and a wide selection of custom accessories, it can be tailored to match complex operational requirements while ensuring ATEX compliance and energy-efficient operation.

Key Features

• ATEX Certified:

  • Zone 1 (II2G), Zone 2 (II3G)

  • Zone 21 (II2D), Zone 22 (II3D)

• Ex Marking:

  • Ex h IIB T4 Gb

  • Ex h IIB T3 Gc

  • Ex h IIIB T135°C Db

  • Ex h IIIB T200°C Dc

• Airflow Capacity: Up to 37,000 m³/h

• Maximum Pressure: Up to 19,000 Pa

• Impeller Type: Backward curved blades

• Materials:

  • Casing: Epoxy-coated steel, galvanized steel, or stainless steel (304/316)

  • Impeller: Steel or stainless steel (304/316)

• Motor: ATEX IP55, 230V single-phase or 400V three-phase, 50 Hz

• Speed Control: Compatible with frequency converters

• Mounting Configurations:

  • Motor-supported (Arrangement 4)

  • Reinforced motor plate (Arrangement 5)

  • Belt-driven

• Outlet Angles: 16 configurations for flexible installation

• Accessories:

  • Inspection window

  • Support feet

  • Protection grids

  • Flexible connections

  • Flanges

  • Anti-vibration mounts

  • Drain

  • Shutters

  • Switches

  • Sound-insulated cabins

  • Frequency converters

• Customization: Motors available with alternative voltages, frequencies, and heavy-duty configurations for high-performance applications
