ATEX Wall Mounted Climate Control

ATEX Wall Mounted Climate Control

Made To Order

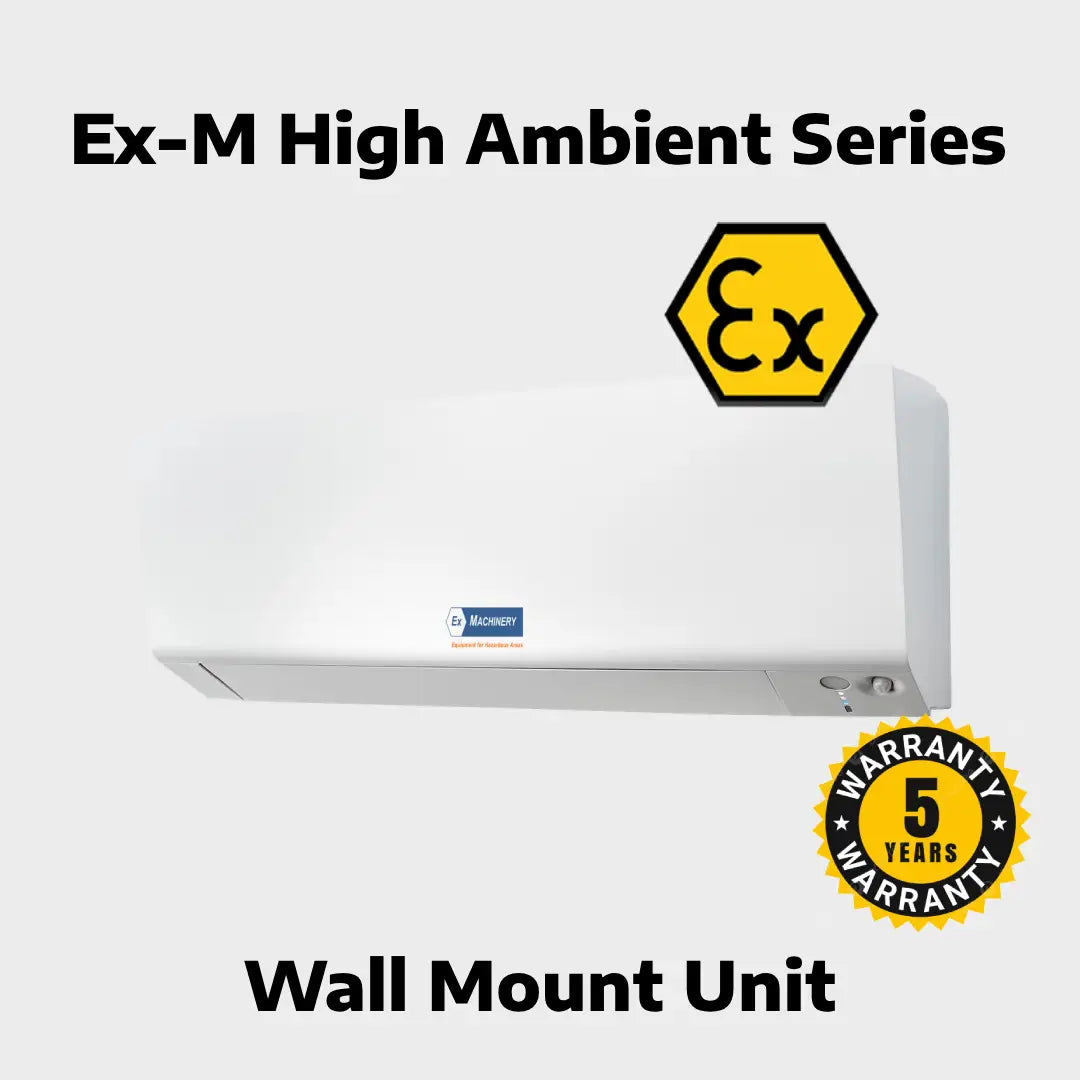

The ATEX Wall Mounted Climate Control - ExM High Ambient Series - Type ExM  FTXM35-100 is designed to provide reliable and efficient air conditioning in hazardous areas  with high ambient temperatures. This explosion-proof unit is certified for ATEX zone 2 (3G) and zone 22 (3D), ensuring safe operation in industries such as oil and gas, chemical, and  food and beverage. Its robust construction and advanced features ensure superior performance and energy efficiency, maintaining a comfortable and safe environment even in extreme conditions. Choose this model for its compact design and ease of installation,
making it ideal for spaces where floor and ceiling mounting are not feasible.

Built upon Daikin's commercial air conditioning technology, the ExM High Ambient Series Wall Mounted Climate Control offers enhanced features tailored for hazardous environments. These include advanced corrosion protection, technical cooling functions, and seamless integration with industrial control systems. This unit is engineered to withstand harsh environments while maintaining optimal indoor air quality and comfort.

Price:

View full details
Wall Mount
ATEX Wall Mounted Climate Control

ATEX Wall Mounted Climate Control

Product Image

Table Explosion Protection Specs

Feature Details
EU Directive 2014/34/EU (ATEX114)
ATEX marking gas (indoor unit) 3G Ex h ic nAC IIB (+H2) T4 Gc
ATEX marking gas (outdoor unit) II 3G Ex h nAC IIB (+H2) T3 Gc
ATEX marking dust (indoor unit) II 3D Ex tc h IIIB T140°C Dc
ATEX marking dust (outdoor unit) II 3D Ex tc h IIIB (+H2) T150°C Dc
Applied standards EN 60079-0, EN 60079-11, EN 60079-15, EN 60079-31, EN 80079-36, EN 80079-37

Product Image

Key Features Bullet points

  • Certified for ATEX zone 2 and zone 22 environments
  • Designed for high ambient temperatures up to 52°C
  • Capable of both cooling and heating
  • Energy-efficient operation with low power consumption
  • Quiet operation with minimal noise levels
  • Corrosion protection coating for industrial and marine environments
  • Seamless integration with Building Management Systems (BMS) and Distributed Control Systems (DCS)
  • Available in multiple capacities to suit various application needs

Optional features

The ATEX Wall Mounted Climate Control offers several optional features to enhance its performance and suitability for various environments. For applications requiring higher durability, a marine upgrade is available, providing additional corrosion protection on fins, coils, and outdoor casings. Users can opt for an R410a retrofit, replacing the standard R32 refrigerant, and a 50Hz/60Hz upgrade to accommodate different electrical systems. Additional safety and convenience can be achieved with a rugged IP66 casing wired remote control, offshore corrosion resistance treatment, and an ATEX isolating switch for maximum safety in hazardous areas.


Types


EX-M FTXM35 Ex-M FTXM50 Ex-M FTXM60 Ex-M FAA71 Ex-M FAA100
Nominal cooling
capacity
3.5 kW 5.0 kW 6.0 kW 6.8 kW  9.5 kW
11940 BTU     17060 BTU 20470 BTU 23200 BTU 32400 BTU
1 RT 1.4 RT 1.7 RT 1.9 RT 2.7 RT
Nominal heating
capacity
4.0 kW 6.0 kW 7.0 kW 7.5 kW 10.8 kW
13650 BTU 20470 BTU 23900 BTU 25600 BTU 36850 BTU
1.2 RT 1.7 RT 2 RT 2.1 RT 3 RT
Indoor Unit
Dimensions (mm)
294x811x272 300x1,040x295 300x1,040x295 790x1,050x238 340x1,200x240
10 KG 14.5 KG 14.5 KG 13 KG 17 KG
Electrical Supply
1Phase, 220-240V,
50/60Hz
1Phase, 220-240V,
50/60Hz
1Phase, 220-240V,
50/60Hz
1Phase, 220-240V,
50/60Hz
3Phase with
Neutral, 380-
415V, 50Hz
(60Hz on
request)
Operating Range
Cooling
-20 °C +52 °C -20 °C +52 °C -20 °C +52 °C -20 °C +52 °C -20 °C +52 °C
Operating Range
Heating
-20 °C +24 °C -20 °C +24 °C -20 °C +24 °C -20 °C +18 °C -20 °C +18 °C
Refrigerant
R32 (R410-A
Optional)
R32 (R410-A
Optional)
R32 (R410-A
Optional)
R32 (R410-A
Optional)
R32 (R410-A
Optional)
