Ecom Tab Ex 03 DZ1
Ecom Tab Ex 03 DZ1

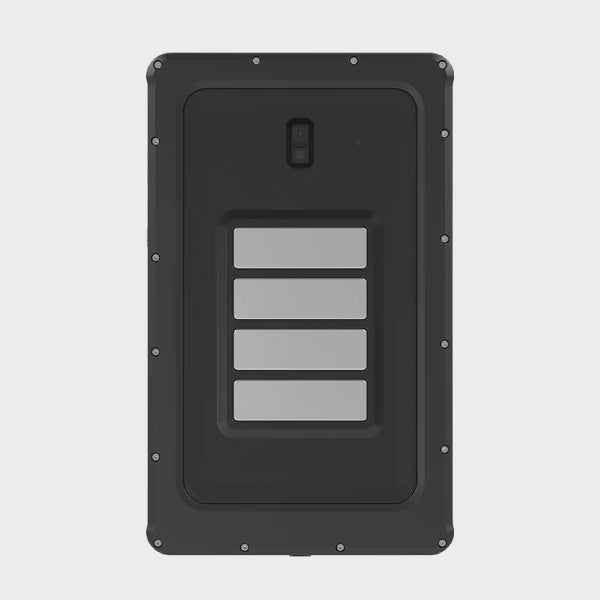

The Tab-Ex® 03 DZ1 is an intrinsically safe tablet designed for use in hazardous areas classified as Zone 1/21 and Division 1. Running on the latest Android™ 13 operating system, this tablet offers powerful performance and a wide range of features for efficient and safe operation in demanding industrial environments.
Powered by an Exynos 9810 (Lhotse) Octa-Core 64-Bit chipset with 4 GB of RAM and 64 GB of internal storage (expandable up to 1 TB via microSD), the Tab-Ex® 03 DZ1 provides ample power and storage for running applications and storing data. The 8" TFT display features a WUXGA resolution (1920 x 1200 pixels) and a brightness of 480 nits, allowing for easy readability even in challenging lighting conditions. The touch screen can be operated with gloves or in wet conditions and snow.
| Explosion Protection | |
| ATEX | II 2G Ex db ia IIC T6 Gb IP64 II 2D Ex ia tb IIIC T80°C Db Ta= -20°C to +55°C |
| IECEx | Ex db ia IIC T6 Gb IP64 Ex ia tb IIIC T80°C Db Ta = -20°C to +55°C |
| UKCA | II 2G Ex db ia IIC T6 Gb IP64 II 2D Ex ia tb IIIC T80°C Db Ta= -20°C to +55°C |
| NEC / CEC | Class I, Division 1, Groups A,B,C,D T6 Class I, Zone 1, AEx db ia IIC T6 Gb Ex db ia IIC T6 Gb Ta = -20°C to +50°C |
Price:
Ecom Tab Ex 03 DZ1
Key features and benefits
The tablet is equipped with a range of sensors, including an accelerometer, gyro sensor, geomagnetic sensor, hall sensor, and RGB light sensor. It offers comprehensive wireless connectivity options, such as Wi-Fi 802.11 a/b/g/n/ac/ax (2.4GHz + 5GHz) with 2x2 MIMO, Bluetooth® v5.0, Wi-Fi Direct, and NFC EMV L1. The device also supports GPS, GLONASS, Beidou, and Galileo for precise location tracking.
The Tab-Ex® 03 DZ1 supports a wide range of cellular frequency bands for global connectivity, including 4G LTE (FDD and TDD), 3G UMTS, and 2G GSM. A US version is available with specific LTE support for major carriers like AT&T, Sprint, T-Mobile, and Verizon. The tablet features a 13 MP autofocus rear camera and a 5 MP front camera, with an optional non-camera version available for environments where cameras are restricted.
product specifications
| Weight | 1.10 kg |
| Dimensions | 26.3 × 16.2 × 2.6 cm |
| ATEX Certification |
II 2G Ex db ia IIC T6 Gb IP64 II 2D Ex ia tb IIIC T80°C Db |
| IECEx Certification |
Ex db ia IIC T6 Gb IP64 Ex ia tb IIIC T80°C Db |
| Model | Ecom Tab Ex 03 DZ1 |
| Operating System | Android™ |
| Display |
Can be operated while wearing gloves Touchscreen technology: Capacitive multitouch Type: TFT, LCD Screen diagonal: 20.31 cm Aspect ratio: 16:10 Resolution: 1920 x 1200 (WUXGA) Brightness: 480 cd/m2 (nit) Colors: 16 Mio. |
| Storage |
RAM: 4 GB, internal data memory: 64 GB microSD (up to 1024 GB) 512 GB installed |
| Types of Protection | IP64 according to EN/IEC 60079-0 (ATEX/IECEx) MIL-STD-810H |
| Connectivity |
2G GSM 850 MHz, GSM 900 MHz, DCS 1800 MHz, PCS 1900 MHz 3G UMTS band: B1 (2100), B2 (1900), B4 (AWS), B5 (850), B8 (900) 4G LTE FDD: B1 (2100), B2 (1900), B3 (1800), B4 (AWS), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B17 (700), B20 (800), B28 (700), B66 (AWS-3) TDD LTE: B38 (2600), B40 (2300), B41 (2500) |
| Processor | Octa-core, 4 x 2.7 GHz + 4 x 1.7 GHz Exynos 9810 |
| Brand | Ecom |
