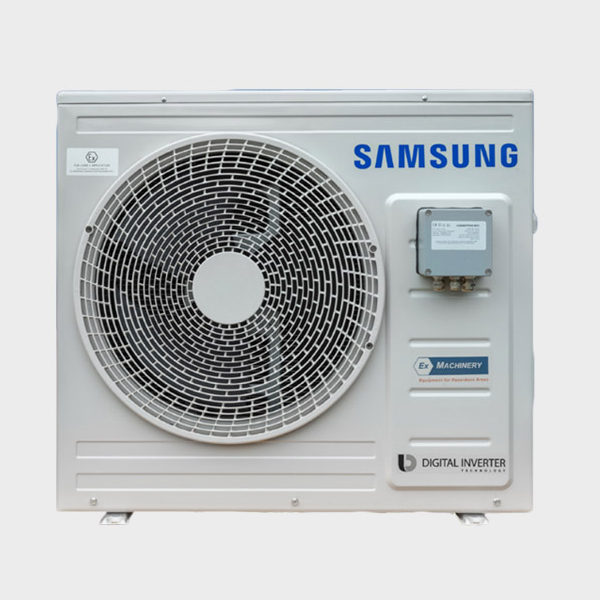

Ex-Machinery ATEX Split AC Units
Ex-Machinery ATEX Split AC Units
The Ex-M RAC Economical Split Unit Air Conditioners are the most economical solution for providing explosion-proof climate control in spaces that do not require 24/7 cooling or heating duty. Designed for use in hazardous areas classified as ATEX Zone 2 (3G) or 22 (3D), these air conditioners are ideal for (offshore) office containers, operator shelters, or crane cabins located in such environments.
Based on the Mitsubishi Electric RAC series, these units are converted and certified to explosion-proof standards by Ex-Machinery Explosion Proof Equipment B.V. The air conditioners are designed to operate in the European climate, with an operation range from +46°C down to -10°C or -25°C ambient temperature. After hours, the AC unit defrosts and is ready for optimal cooling and heating again for 12 to 15 hours at a time.
| Explosion Protection | |
| EU Directive | 2014/34/EU (ATEX114) |
| ATEX Marking (Indoor Unit) | 3G Ex h ic nAC IIB (+H2)T4 Gc 3D Ex ic tc h IIIB T140°C Dc |
| ATEX Marking (Outdoor Unit) | 3G Ex h ic nAC IIB T3 Gc 3D Ex ic tc h IIIB T150°C Dc |
| Applied Standards | EN 60079-0, EN 60079-11, EN 60079-15, EN 60079-31, EN 80079-36, EN 80079-37 |
Ex-Machinery ATEX Split AC Units
Key features of the Ex-M RAC
- Most economical explosion-proof air conditioning models
- ATEX Zone 2 and 22 certifications for indoor and/or outdoor units
- Compact design
- Cooling and heating capabilities
- Operation range from +46°C down to -10°C or -25°C ambient temperature
Optional features available upon request include corrosion protection coating, stainless steel screws, ATEX isolating switch, ATEX adaption box to connect with 3 Phase no neutral/380V, and an ATEX junction box for redundant operation.
product specifications
| Capacity | 1.5 – 25 kW |
| Voltage |
230 VAC, 50/60 Hz 480 VAC, 3Ph with or without neutral, 50/60 Hz |
| Technology | Inverter, silent scroll compressor, refrigerant R410-A or R32 |
| Optional Features | Corrosion protection, redundant systems, high ambient temperatures up to 55°C (standard 46°C, optional 50°C or 55°C) |
| EU Directive | 2014/34/EU (ATEX 114) |
| Applied Standards |
EN 60079-0; Explosive atmospheres – Part 0: Equipment – General requirements EN 60079-11; Explosive atmospheres – Part 11 : Equipment protection by intrinsic safety "i" EN 60079-15; Explosive atmospheres – Part 15 : Equipment protection by type of protection "n" EN 60079-31; Explosive atmospheres – Part 31: Equipment dust ignition protection by enclosure "t" EN 80079-36; Explosive atmospheres : Non-electrical equipment for explosive atmospheres – Basic method and requirements EN 80079-37; Explosive atmospheres : Non-electrical equipment for explosive atmospheres – Non-electrical type of protection “h” |
| Brand | Ex-Machinery |
