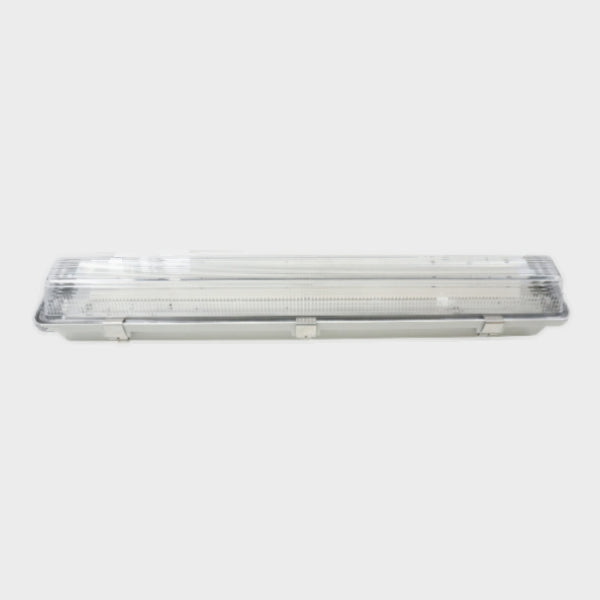

Petrel XN Series
Petrel XN Series
The Petrel XN Series comprises certified lighting fixtures specifically designed for use in ATEX Zone 2 and 22 hazardous environments. These versatile luminaires are available in both LED and traditional fluorescent options, catering to diverse lighting requirements and energy efficiency preferences.
One of the standout features of the Petrel XN Series is its "unrestricted breathing" designation. This design aspect significantly reduces maintenance costs by eliminating the need for testing during routine inspections, streamlining upkeep procedures and minimizing downtime.
| Certifications and Geographical Recognition | |
| NEC/CEC (Class/Division) | Recognized in the USA and Canada |
| NEC/CEC (Class/Zone) | Recognized in the USA and Canada |
| ATEX | Mandatory in EU, EEA, Turkey, and the United Kingdom; accepted in most countries not listed elsewhere |
| INMETRO | Recognized in Brazil (based on IECEx) |
| IECEx | Mandatory in Australia and Israel; accepted in most countries not listed elsewhere |
Price:
Petrel XN Series
Key Features
The luminaires are engineered with convenience in mind, featuring stainless steel diffuser clips that provide easy access for lamp replacement and maintenance. This thoughtful design ensures quick and efficient servicing, further reducing operational costs.
To accommodate various application needs, the Petrel XN Series is offered in a range of sizes suitable for both Zone 2/22 and safe area installations. This flexibility allows for seamless integration into different environments while maintaining the highest standards of safety and performance.
Please note that the listed price of €595.00 applies specifically to the 2-foot, 2x18w, 3300-lumen emergency fluorescent version. Prices may vary for other sizes, configurations, and lighting technologies.
- Suitable for ATEX Zone 2 and 22: Certified for use in hazardous environments
- LED and Fluorescent Options: Available in energy-efficient LED and traditional fluorescent versions
- Unrestricted Breathing Design: Reduces maintenance costs by eliminating testing during routine inspections
- Easy Access and Lamp Replacement: Stainless steel diffuser clips facilitate quick maintenance
- Various Sizes: Offered in different sizes for Zone 2/22 and safe area installation
- Optional Extended Warranty: Up to 5 years of extended warranty available
Product specifications
| ATEX Certification | Ex II 3 GD Ex nA nC mc IIC T4 Gc Ex tc IIIC T135°C D |
| Model | Petrel XN Series |
| Entries | 2 x M20, 1 plugged as standard |
| Electrical connections | 3 wire and earth cable size 4mm2 max. Through wiring versions available |
| Light Output | Various ranging from 2500 lm-10000lm |
| Power Supply | 220V-240V AC 50/60 Hz as standard |
| Installation | Snap on stainless steel brackets for vertical mounting are included, heavy duty options available |
| Dimensions | Size 2: 702mm Size 4: 1312mm Size 5: 1612mm |
| Weight | Size 2: 2.8kg Size 4: 3.2kg Size 5: 3.4kg |
| Brand | Petrel |
