VN-Plastic F ATEX Fan | Explosion Proof Plastic Centrifugal Fan for Hazardous Areas

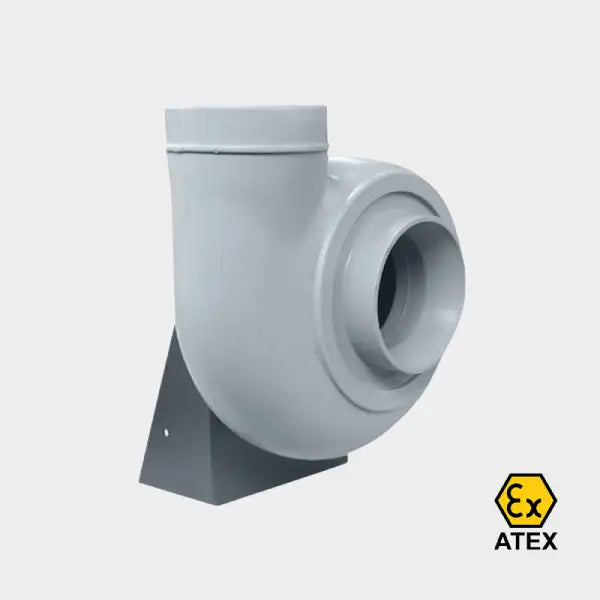

The VN-Plastic F ATEX Fan is a centrifugal plastic fan with forward-curved blades, engineered for safe use in ATEX Zones 1 and 2 (gas) and Zones 21 and 22 (dust). Designed for demanding industrial environments, it delivers airflow rates up to 25,000 m³/h and pressures up to 5,000 Pa, ensuring reliable performance in hazardous conditions.

Constructed from corrosion-resistant PE, PP, or PVC, the fan is built for durability and chemical resistance. The impeller is available in PP, PVC, or stainless steel (304/316), offering flexibility based on environmental and process requirements. It is powered by an ATEX-certified IP55 motor, available in 230V single-phase or 400V three-phase options, and supports frequency converter control for precise speed adjustment.

Available in sizes ranging from 130 mm to 800 mm, the VN-Plastic F ATEX Fan can be tailored to a variety of industrial setups. Customization options include alternate voltages, frequencies, and certification configurations. A broad range of accessories—such as protection grids, flexible connectors, anti-vibration mounts, silencers, and sound-insulated cabins—further enhances its adaptability.

Key Features

• ATEX Certified for Zone 1, 2 (gas) and Zone 21, 22 (dust)

• Airflow Capacity: Up to 25,000 m³/h

• Pressure Range: Up to 5,000 Pa

• Size Range: 130 mm to 800 mm

• Casing Material: PE, PP, or PVC

• Impeller Material: PP, PVC, or Stainless Steel (304/316)

• Motor: ATEX-certified, IP55 protection, 230V single-phase or 400V three-phase

• Speed Control: Compatible with frequency converters

• Customization: Available in different voltages, frequencies, and certifications

• Accessories: Protection grids, flexible connections, anti-vibration mounts, silencers, sound-insulated cabins, and more

Ex Markings

• Ex h IIC T3 Gb

• Ex h IIC T3 Gc

• Ex h IIIC T125°C Db

• Ex h IIIC T125°C Dc
