How to Choose ATEX Air Conditioners Effectively

Selecting the right ATEX air conditioner for hazardous environments requires careful consideration of multiple technical factors to ensure safety, compliance, and optimal performance. This comprehensive guide will help you navigate the selection process with confidence.

Understanding ATEX Zone Classifications

Key Zone Classifications:

  • Zone 0/20: Areas with constant presence of explosive atmospheres
  • Zone 1/21: Areas where explosive atmospheres occur occasionally during normal operation
  • Zone 2/22: Areas where explosive atmospheres occur rarely or for short durations

Featured ATEX Air Conditioning Solutions

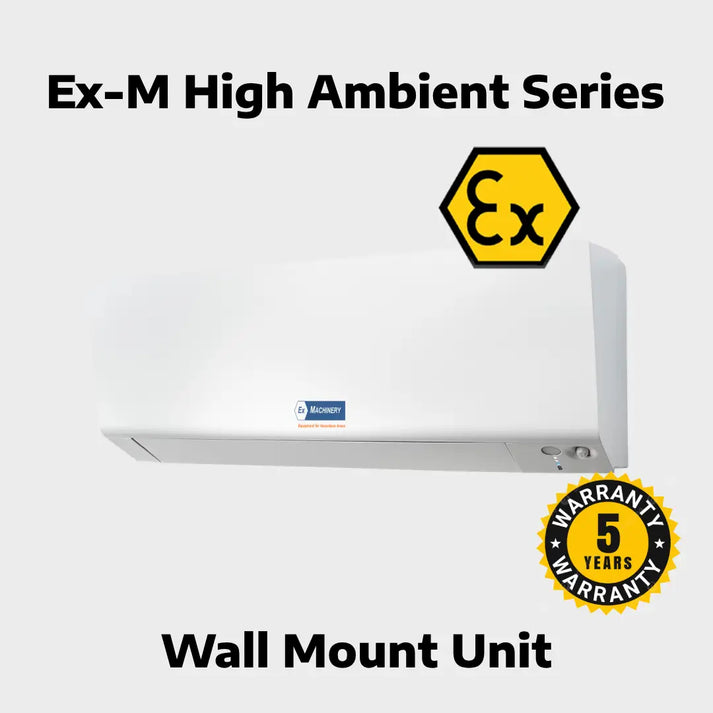

ATEX Wall Mount Air Conditioner

ATEX Wall Mount Air Conditioner

Advanced wall-mounted solution featuring:

  • Suitable for Zone 1/21 environments
  • High cooling capacity options
  • Energy-efficient operation
  • Robust explosion-proof construction
ATEX Ceiling Suspended Air Conditioner

ATEX Ceiling Suspended Air Conditioner

Versatile ceiling-mounted unit offering:

  • Flexible installation options
  • Advanced temperature control
  • Low noise operation
  • Comprehensive safety features

Critical Selection Factors

Equipment Protection Levels

ATEX equipment categories correspond to specific protection levels, each designed for different hazardous environment classifications:

Category 1 Equipment
  • Protection Level: Highest available (Zone 0/20)
  • Safety Features: Multiple independent protection methods
  • Application: Areas with continuous explosive atmosphere presence
  • Example Environments: Inside reaction vessels, storage tanks with explosive materials
  • Certification Requirements: Most stringent testing and documentation
Category 2 Equipment
  • Protection Level: Enhanced protection (Zone 1/21)
  • Safety Features: Suitable for frequent explosive atmosphere exposure
  • Application: Areas where explosive atmospheres are likely
  • Example Environments: Processing areas, mixing rooms, paint booths
  • Special Features: Maintains protection even in equipment malfunction
Category 3 Equipment
  • Protection Level: Normal protection (Zone 2/22)
  • Safety Features: Basic protection for normal operation
  • Application: Areas with infrequent explosive atmosphere exposure
  • Example Environments: Storage areas, peripheral zones
  • Operation Requirements: Safe operation under normal conditions

Gas Groups and Temperature Considerations

Gas Group Classifications
  • IIA (Propane):
    • Least volatile gases
    • Common in petrochemical applications
    • Lower energy ignition requirements
  • IIB (Ethylene):
    • Medium volatility gases
    • Found in chemical processing
    • Moderate ignition energy
  • IIC (Hydrogen):
    • Most volatile gases
    • Highest safety requirements
    • Lowest ignition energy needed
Temperature Classes
  • T1 (450°C): Suitable for most industrial applications
  • T2 (300°C): Common in chemical processing
  • T3 (200°C): Standard for many applications
  • T4 (135°C): Higher safety requirement areas
  • T5 (100°C): Specialized applications
  • T6 (85°C): Most stringent temperature requirement

Environmental Protection Standards

IP (Ingress Protection) Ratings:

  • IP65: Complete dust protection, water jet resistance
    • Suitable for most industrial environments
    • Protected against low-pressure water jets
  • IP66: Complete dust protection, powerful water jet resistance
    • Enhanced water protection
    • Suitable for wash-down areas
  • IP67: Complete dust protection, temporary immersion protection
    • Can withstand temporary flooding
    • Highest level of environmental protection

Operational Requirements

Factor Considerations Impact
Ambient Temperature Operating range limits Affects cooling efficiency and safety
Duty Cycle Continuous vs. intermittent operation Influences unit sizing and reliability
Maintenance Access Accessibility requirements Affects installation location and service planning

Installation Options

ATEX Cassette Air Conditioning

Cassette Type

Perfect for suspended ceiling applications with 360° air distribution

Ex Ducted Airco

Ducted System

Ideal for applications requiring concealed installation

ATEX Outdoor AC Unit

Outdoor Unit

Robust solution for external installation requirements

Technical Specifications Guide

Gas Groups and Temperature Classes

Gas Group Typical Applications
IIA (e.g., propane) Chemical processing facilities
IIB (e.g., ethylene) Pharmaceutical manufacturing
IIC (e.g., hydrogen) Hydrogen processing plants

Cooling Capacity Selection

Available Capacity Ranges:

  • Small Units: 900-2,500 BTU/hr (0.26-0.73 kW)

    Ideal for small control rooms and electrical cabinets

  • Medium Units: 5,000-15,000 BTU/hr (1.46-4.4 kW)

    Suitable for medium-sized spaces and equipment rooms

  • Large Units: 18,000-24,000 BTU/hr (5.28-7.03 kW)

    Perfect for large industrial spaces and processing areas

Environmental Considerations

Refrigerant Options

  • R-32:
    • Zero Ozone Depletion Potential
    • Low Global Warming Potential (GWP) of 675
    • Excellent energy efficiency
  • R-410A:
    • Widely used in commercial applications
    • Proven reliability
    • Good performance characteristics

Expert Selection Checklist

Essential Considerations:

  • Zone Classification: Verify the specific ATEX zone requirements for your installation area
  • Cooling Capacity: Calculate the required capacity based on space size and heat load
  • Mounting Options: Consider available space and installation constraints
  • Energy Efficiency: Evaluate operating costs and energy consumption
  • Noise Levels: Check sound ratings for compatibility with work environment
  • Additional Features: Consider heat pump functionality, remote control options, and protection ratings

Conclusion

Selecting the right ATEX air conditioner requires careful consideration of multiple factors to ensure both safety and performance. Work with experienced suppliers and consider all technical aspects to make an informed decision that meets your specific requirements. Explore our complete range of explosion-proof HVAC solutions for options that match your needs.
